Modern society and business is increasingly reliant on technology, IT systems, power
networks and mobile communication systems etc..
Interruption to any of these services can not only cause great inconvenience but
can also have a massive financial impact.
Loss of data or complete system failures caused by abnormal temperatures in IT Rooms
or Server Cabinets can cost millions to rectify.
Damage to equipment and property from flooding, burst pipes, gas leaks etc.. Are
very real problems and can be the source of great financial and personal loss.

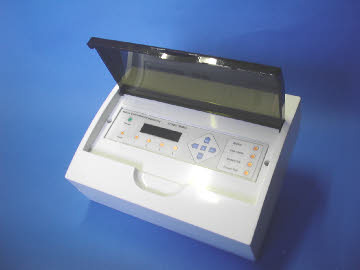

The EM-4 is a four channel monitoring platform designed to form the basis of a complex
and highly intuitive alarm system.
The EM-4 can be configured to suit a wide range of input types (Mixed if required).
Input types include :- Temperature sensors, Current transformers, Voltage sensors,
Flood and Burst Pipe detectors (Please contact the factory to discuss individual
The unit offers fully programmable alarm outputs for each channel as well as a “Pre=Alarm”
function which can be enabled to provide advanced warnings of potential alarm conditions.
Battery Back-Up is provided as standard and sensors are constantly monitored for
Input Power 230v 50Hz, 300mA
12v-24v DC, 500mA Max
(Depending on type req’d).
Detection Channels Four
Fault Signals System Failure
Alarm Outputs Open Collector
Global Alarm (Relay O/P)
Global Pre-Alm (Relay O/P)
System Fault (Relay O/P)
Relay modules are available which allow individual channels to activate external
equipment (Diallers, Aircon, pumps etc..).
